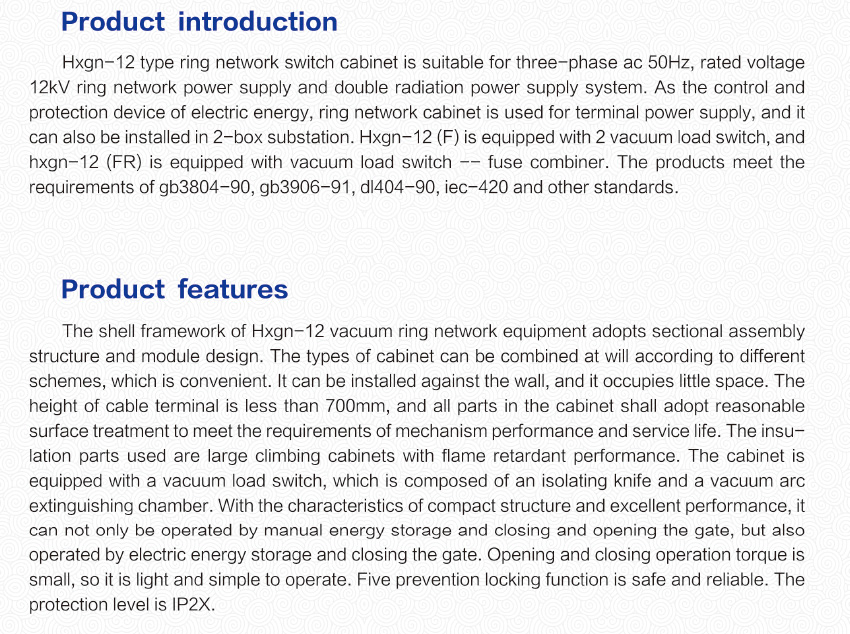

Product Introduction

Hxgn-12 type ring network switch cabinet is suitable for three-phase ac 50Hz, rated voltage12kV ring network power supply and double radiation power supply system. As the control andprotection device of electric energy, ring network cabinet is used for terminal power supply, and itcan also be installed in 2-box substation. Hxgn-12 (F) is equipped with 2 vacuum load switch, andhxgn-12 (FR) is equipped with vacuum load switch -- fuse combiner. The products meet therequirements of gb3804-90,gb3906-91,dl404-90,iec-420 and other standards.
